7″ Capacitive or Resistive Touchscreen HDMI and VGA Monitor touch display

7″ Capacitive or Resistive Touchscreen HDMI and VGA Monitor touch display

touch display tft display touch screen monitor touchscreen monitor touch screen industrial touch screen tft screen touchscreen monitor industrial multi touch monitor lcd tft display panel tft monitor touchscreen tft panel monitor

As a common human-computer interaction device, ROCFLY touch screen has been widely used in various fields. Whether in mobile equipment or industrial control and medical equipment, touch screen has been ubiquitous and increasingly become an indispensable part of people's life.

Model： RF-TMO002
Operating System： Without
Installation： Wall Mounted,Bracket Mounted
After-sales Service： 1 Year

Parameters

Model： RF-TMO002
Operating System： Without
Installation： Wall Mounted,Bracket Mounted
After-sales Service： 1 Year

Product Detail

Description	7″ Capacitive Touchscreen HDMI&VGA Monitor
Model	FW669AHCT
	FW669AH W/O Touch
Brightness	500cd/m²
Touch Screen	5 ponits capacitive touch or 4-Wire Resistive Touch(5-Wire for Optional)
Touch Interface	USB（RS232 optional）
Dot Resolution	800480 pixels (max to19201440)
Aspect Ratio	16:9
Contrast Ratio	500:1
Backlight	LED
Viewing Angle	70°/70°(L/R) 50°/60°U/D
Input Signals	HDMI, VGA, AV
HDMI Format:	480i,480p,576i,576p,720p,1080i,1080p(50/60Hz)
Mounting Process	stand bracket
	VESA 75*75mm
	1/4-20 Hole in the bottom
Input Voltage	DC12V±10%
Power Consumption	≤8W
workingTemperature	-20℃～55℃
storage Temperature	-30℃～65℃

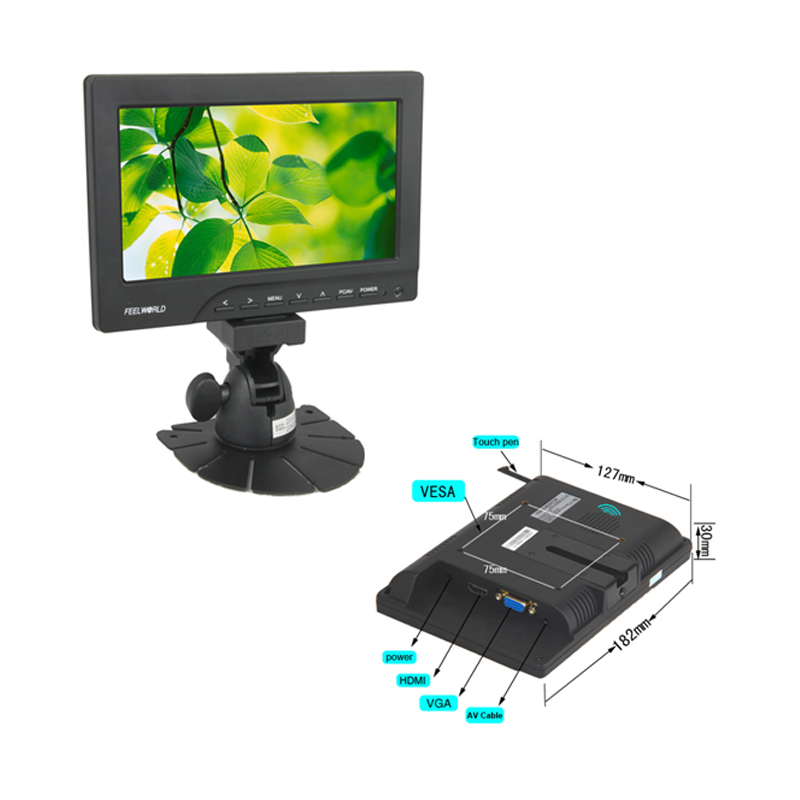

Unit Size	182.7L × 127.7W × 29.6H(mm)
Unit Weight	400g
OS Support for touch	Standard Accessories	Packing Details
Android	home use power supply	single box size	31.119.67CM
MAC	car power supply	single box weight	1.08KG
Vista	AV cable	packing quantity	10pcs
Linux	HDMI+USB，2 in 1	carton size	41.733.247.7cm
Win CE	remote controller	N.W.	11.68kgs/carton
MS-DOS	Bracket	G.W	12.68kgs/carton
Window XP	CD driver
Window NT4	English user manual
Window 9X/ME
