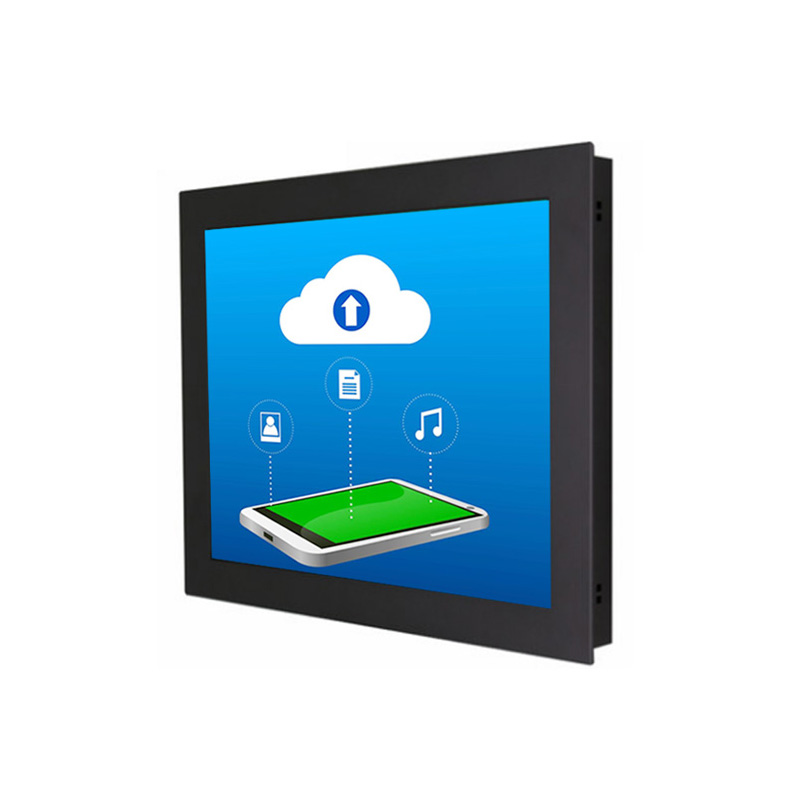

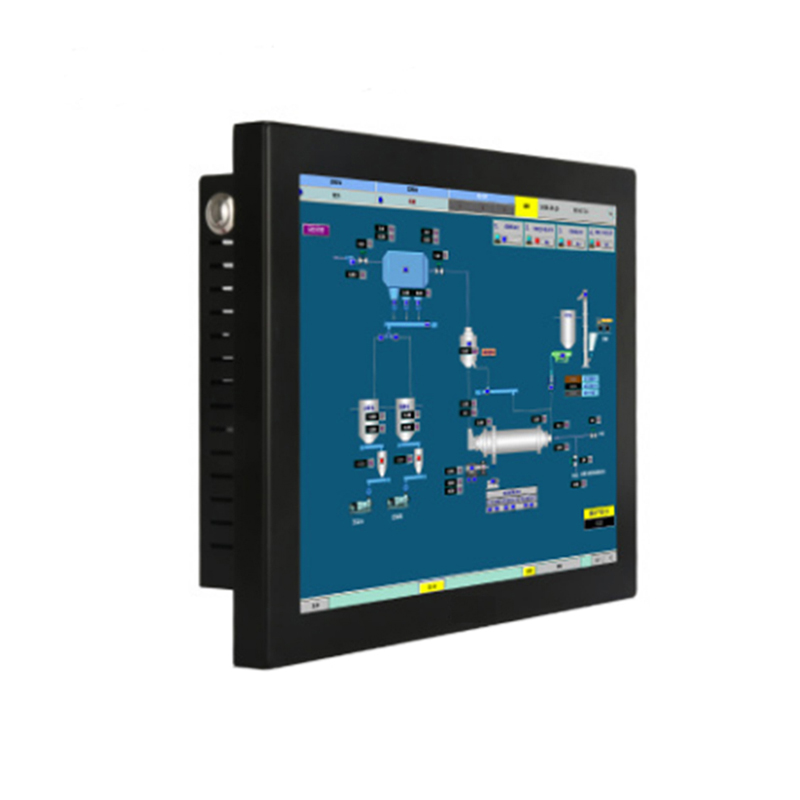

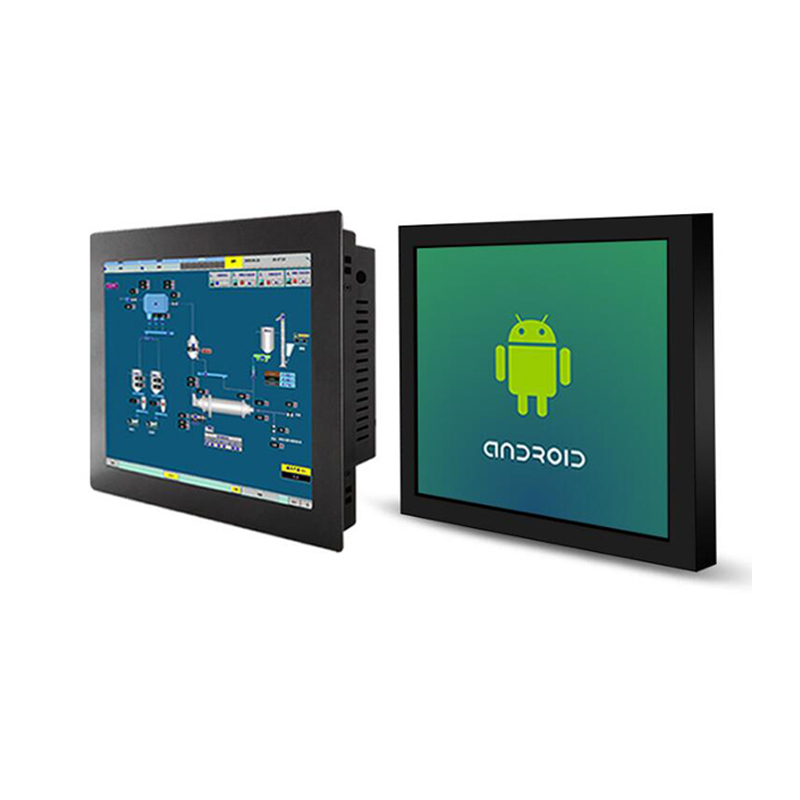

Industrial Grade Capacitive or resistive touch display open frame monitor embedded for kiosk self-service terminals

Graphic
Detail

Industrial Grade Capacitive or resistive touch display open frame monitor embedded for kiosk self-service terminals

touch display tft display touch screen monitor touchscreen monitor touch screen industrial touch screen tft screen touchscreen monitor industrial multi touch monitor lcd tft display panel tft monitor touchscreen tft panel monitor

As a common human-computer interaction device, ROCFLY touch screen has been widely used in various fields. Whether in mobile equipment or industrial control and medical equipment, touch screen has been ubiquitous and increasingly become an indispensable part of people's life.

Model： RF-TMO005
Operating System： Without
Installation： Wall Mounted,Bracket Mounted
After-sales Service： 1 Year

Parameters

Model： RF-TMO005
Operating System： Without
Installation： Wall Mounted,Bracket Mounted
After-sales Service： 1 Year

Product Detail

1.Key Specifications/Special Features

Capacitive touch panel	Panel size	19” 421.0×346.0×1.1 mm(LWT)or other sizes
	Surface hardness	6H
	Transparancy	>90%
	Working temperature	-30℃ ～ +75℃
	Storage tamperature	-40℃ ～ +85℃
	Humidity	90% at 60℃
	Linearity	±1mm
	Touch lifespan	>300，000，000 times
	Max.resolution	4096×4096
	Max.touch points	10
	Working voltage	3.3V DC
	Power consumption	Active Mode<30ma; Idle Mode:5mA<30MA
	Respond time	<10ms
	oscillation frequency	12MHz
	Max.working frequency	100MHz
	Read speed	10PT:80Hz
	Antistatic air discharge	8KV
	Antistatic contact discharge	4KV
LCD display	Panel brand	LG/BOE
	Panel type	a-Si TFT-LCD
	Panel size	15″17″19”21.5″ etc.
	Resolution	1280(RGB)x1024(SXGA)/1920*1080
	Pixel density	86PPI
	Pixel arrangement	RGB vertical strip
	Display ratio	5:4(W:H)
	dot pitch	0.0976×0.2928 mm(H*V)
	Pixel pitch	0.2928×0.2928 mm(H*V)
	Surface treatment	Fog surface (Haze 25%),Hard coating(3H)
	Display area	374.784×299.827 mm(H*V)
	Appearance size	378.8×303.0 mm(H*V)
	Display mode	ADS, constant black display, transmission mode
	Brightness	350 cd/m²（Typ.）
	Contrast ratio	1000:1（Typ.）(transmission)
	Display colors	16.7M (6-bit + Hi-FRC)
	Responding time	8/8(Typ.)(Tr/Td);14(Typ.)(G to G)(ms)
	Viewing angle	89/89/89/89(Typ.)(CR≥10)(L/R/U/D)
	Best viewing angle	360-degree viewing angle
	White Field Dynamic	1.33(Max.)(9 points)
	Scanning frequency	60Hz
	inversion scanning	NO
	Working temperature	0℃ ～ +60℃
	Voltage	5.0V(Typ.)
	Current	0.6/1.1A(Typ./Max.)
	Power	3.0/5.5W(Typ./Max.)
LCD driver panel	Video interface	VGA/DVI-I
	LCD panel interface	Single/double LVDS
	Max.resolution	2048*1152
	Power supply	+12V
	Audio interface	Audio In/Earphone Out
	OSD control	Menu, automatic, left, right select, power supply
	OSD languages	Simplified Chinese, traditional Chinese, English, French, German, Italian, Spanish.etc.
	Speaker	2x1W(8Ω)
	Working temperature	-30℃ ～ +80℃
	OS support	Windows XP/7/8/10
Mechanical parameters	Unit size	428.1×354.8×47.5 mm(LWT)
	Unit weight	5.5 Kg
	Packing size	525.0×455.0×195.0 mm(LWT)
	Packing weight	6.1Kg single/12.2Kg double
	Wall-mount hole position	75×75 mm/100×100 mm VESA Mount
applications	It can be applied in new retails, self-service, finance, medical treatment, industrial control, game and entertainment fields.
