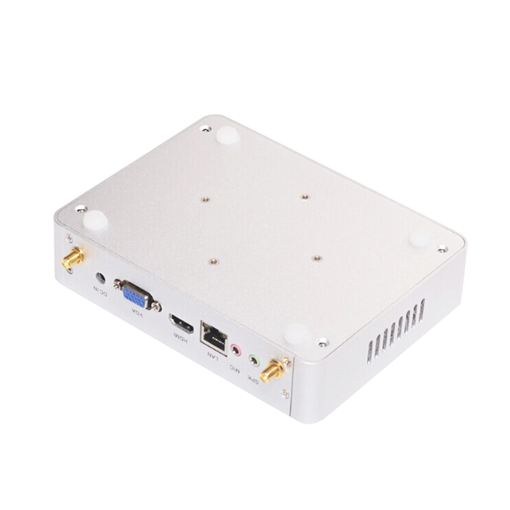

KER Manufacturer industrial control host Mini PC fanless mini computer

KER Manufacturer industrial control host Mini PC fanless mini computer

mini computer mini pc mini pc windows 10 mini pc i7 mini pc i5 intel mini pc mini pc windows industrial mini pc mini pc i3 mini pc amazon mini pc computer mini pc hdmi mini pc core i5 mini pc intel i5

ROCFLY Minitype Industrial Personal Computer adopts the housing of aluminum alloy with efficient heat dissipation, which is conducive to high risk of damage to the host caused by overheating of the host. The industrial quality is guaranteed, the performance is stable, waterproof, dustproof and high-temperature resistant, the impact resistance is strong, the I/O interface is rich, and the customization is supported.

Model： RF-MPC003
Operating System： Windows
Installation： Embedded Mounted
After-sales Service： 1 Year

Parameters

Model： RF-MPC003
Operating System： Windows
Installation： Embedded Mounted
After-sales Service： 1 Year

Product Detail

Specifications

General
CPU	Onboard Intel Core i3-7100U 2.4GHz Dual Core Four Thread processor
Core (FSB)	100MHz
CPU Technique	14nm
L3 Cache	3MB Cache, CPU Integrated
BOIS	AMI BIOS, ACPI supported Support calls on function automatically Support Wake-On-LAN
Chipset	Intel CRESCENTBAY(Intel Broadwell-U)
Memory	1* SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333
Storage	SSD: 8G/16G/32G/64G/128G/256G/512G/1TB HDD: 160G/320G/500G/1TB
Operating System	Windows 7/Windows 8/Windows 10/Linux
Audio	Intel High Definition Audio Controller
Network	Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN
Video	Intel HD Graphics 620
I/O port
front panel ports	1* Power indicator and switch, 4USB3.0, 2USB2.0
Backside ports	1Audio, 1LAN, 1HDMI, 1VGA, 2WiFi antennas, 1DC 12V
Internal ports	1M-SATA3.0 port, support 6Gb/s 1SATA3.0 port, support 6Gb/s 1*mini-PCIE port(WIFI&Bluetooth)
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC 12V~19V/5A
Operating Temperature	0/70 Centigrade(32F~140F)
Storage Temperature	-20/+85 Centigrade
Relative Humidity	0%~90% (non-condensing)
Energy-saving	Support Energy-saving technology, Speedstep
64 bit computing	Support 64 bit computing
Virtualization	Intel VT-x
Hyper-threading	Support Hyper-Threading
Product Dimension & Details
Size	160123.7CM
Weight	1.5KG
Consumption	15W
Shell	silver color aluminum alloy,
Package Content	Mini PC device, power adapter, a VESA mount, dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card
