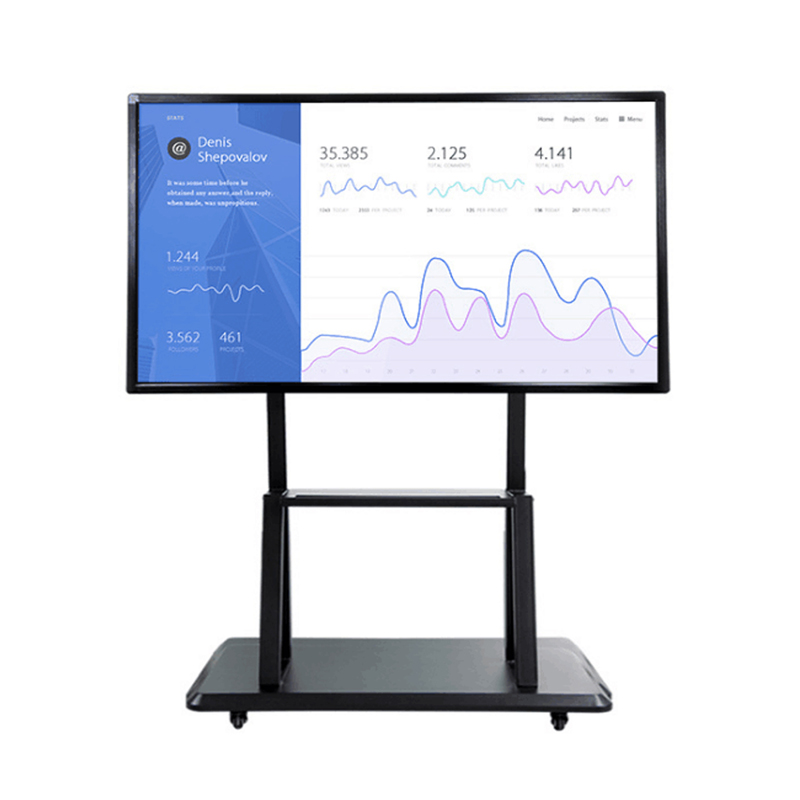

KER factory High Quality 55″ 65″ 75″86″ Android or Windows OS IR touch or Capacitive touch Smart Interactive Whiteboard for Classrooms teaching or meeting rooms

Graphic
Detail

KER factory High Quality 55″ 65″ 75″86″ Android or Windows OS IR touch or Capacitive touch Smart Interactive Whiteboard for Classrooms teaching or meeting rooms

touch monitor touch whiteboard Electronic whiteboard digital whiteboard interactive white board whiteboard screen

Rocfly specializes in offering you a versatile touch-screen all-in-one device, equipped with features for educational whiteboards and online video conferencing.

touch monitor touch whiteboard Electronic whiteboard digital whiteboard interactive white board whiteboard screen

Model： RF-IWB006
Operating System： Windows,Android
Installation： Wall Mounted/Bracket Mounted/Floor Standing
After-sales Service： 1 Year

Parameters

Model： RF-IWB006
Operating System： Windows,Android
Installation： Wall Mounted/Bracket Mounted/Floor Standing
After-sales Service： 1 Year

Product Detail

Functions	Touch function	1. Support 10 points computer touch operation 2.support images Zoom in or out,rotate 3.touch function available even shift different signal sources 4. in the status of display different signal sources, can control signal sources,, volume and other menu controls via touch.
	TV function	1.Cable TV watching 2.USB multimedia files playback 3.embedded Android5.1 OS
	Other function	1. Sleep timer, shutdown memory 2.remote control 3.support LAN and WIFI 4. Support front button, one button switch computer, TV, one button computer reset function. 5. Support embedded HD camera taking pictures, videos 6. Front VGA, HDMI, USB2.0, USB3.0, Touch interface, easy for users to use.
features	Shell and appearance	Aluminum alloy frame corner block design, front button, front port and front speaker.
	Unit dimension	1471 mm 886mm63mm
	Max.power consumption	≤170W(excluded PC）
	Standby	≤0.5W
System parameters	OS	Embedded Android5.1
	CPU	CORTEX A53 Dual Core 1.3GHz
	RAM	DDR3 1G
	Storage	4GB
	Extended storage	SD Max.128G,USB2.0 Max.1T
Touch parameters	Touch embedding mode	Built in integrated, non plug-in.
	Touch sensing technology	Infrared induction recognition touch technology (10 points)
	Writing style	Finger, touch pen or other non transparent objects with diameters less than 5mm (multipoint 8mm)
	Cursor speed	120 dots/s
	positioning accuracy	More than 90% of the touch area is + 2mm.
	communication interface	B type USB male
	Touch resolution	32767*32767
	Touch times	Theoretically nonlimit
	Computer response	System automatic identification; less than 15ms
	Driver	Free-drive
Display parameters	Display size	50”(16:9)
	Panel type	LED LCD panel
	Display area	1100(H) x620(V)
	Resolution	1920（H）×1080（V）（Full HD）
	Colors	10bit, 1.07B
	Refresh frequency	60HZ
	Brightness	320cd/m2
	Contrast ratio	2000：1
	Viewing angle	178 degrees
	Display panel protection	4mm all tempered high explosion-proof glass
	Backlight lifespan	50000hrs
TV parameters	Image standard	PAL/SECAM/NTSC（Option）
	Sound standard	BG /DK /I/L
	Channel storage	200 channels
	Decode	3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filtering, etc.
	Speaker	10W /8Ω× 2
	Audio characteristics	Balance, automatic volume control, surround sound, equalizer
	Input ports	Av1,RF1,Audio1(Pre multiplexing), YpbPr/ YcbCr1, TOUCH PORT1, HDMI1, USB2.04, USB3.01,MIC*1
standard random accessories (with accessories according to actual situation)	Interactive smart whieboard1,remote controller1,warranty card1,touch pen1,1.5m power cable1,user’s manual1, Certificate*1
