Graphic
Detail

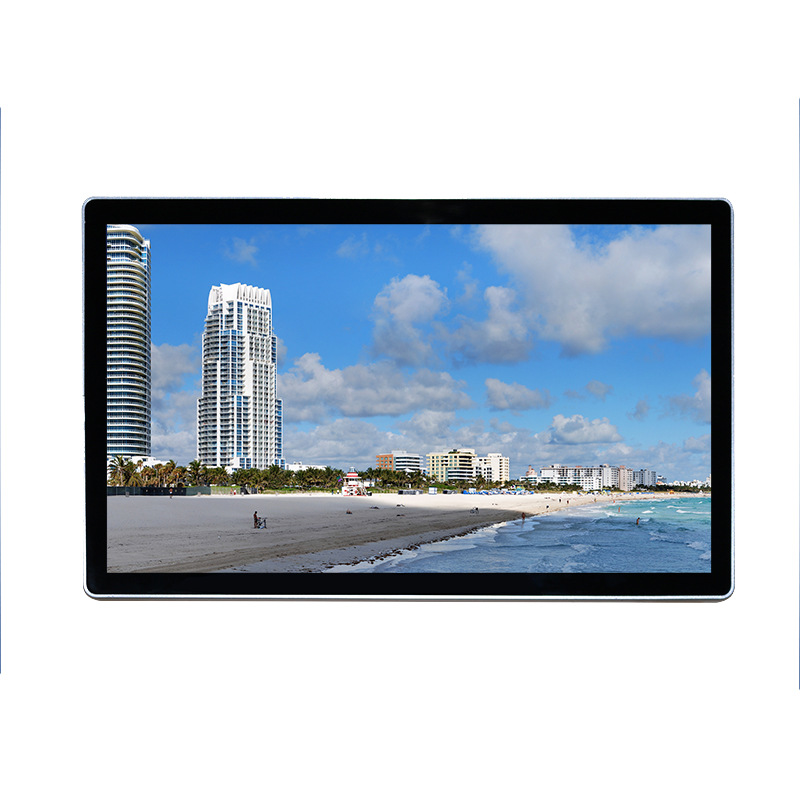

Wall-mounted advertising display

advertising player digital signage all in one pc

On a regular basis, Advanced Kiosks helps implement self-service technology for customers of all kinds. When Houston vision care provider Devlyn Optical contacted us about their project, we tested their software on one of our kiosks, facility to make sure that this would work out of the box. As soon as we tried it we were all impressed and we are sure you will be too.

advertising player digital signage all in one pc

Model： RF-ATS013
Operating System： Windows,Android
Installation： Wall Mounted/Bracket Mounted/Floor Standing/Ceiling Mounted
After-sales Service： 1 Year

Parameters

Model： RF-ATS013
Operating System： Windows,Android
Installation： Wall Mounted/Bracket Mounted/Floor Standing/Ceiling Mounted
After-sales Service： 1 Year

Product Detail

1.Key Specifications


Panel Size	42″
Model No	ZX-N342
Panel Brand	LG/Samsung/AUO/BOE etc
Installation	Floor stand, indoor
Panel Type	LCD screen & LED backlight
Standard Color	Black
Max Resolution (pixel)	1920(RGB)*1080(FHD)
Aspect Ratio	16:09
Dot Pitch(mm)	0.165*0.4845(W×H)
Display Color	16.7M(8bit)
Brightness	500cd/m2
Contrast Ratio	3000:1(Typical)
View Angle	89°/89°89°/89°(Typical)
Response Time	6ms(Typical)
Technical Specification
Frame material	Metal case, aluminum alloy frame,rear side cold roll steel sheet
Remote Controller	IR Remote Controller
Colored System	PAL/NTSC/Auto-detecting
Menu Language	Multiple language,English(Default)
Speakers	2×5W
Noise Reduction	Yes
Voltage Frequency	100V-240V AC
Horizon Frequency	50/60Hz
Power Consume (Max)	≤255W
Working Temperature	0°C~50°C
Working Humidity	10% - 90% no condensation
Storage Temperature	-20°C - 80°C
Storage Humidity	85% no condensation
Operating System(Android for example)
Android CPU(Standard)	Dual Core Allwinner A201.5GHz
Optional CPU	Rockship RK3188 quad-core 1.6GHz
Memory	DDR3 1GB
Built-in Storage	4GB FLASH for A20,8G for RK3188, Support TF card expansion
Update	USB/SD/WIFI/LAN/3G/4G
Touch Funcion	Optional
Touch sensor	capacitive/infrared
Touch surface	9H Anti-glare Tempered Glass
Difference between network and Basic version
Network Version	Basic Version
Android OS 4.2/Windows all in one Optional	Mstar solution
TF/SD/USB	SD/USB
WIFI/RJ45 (3G/4G option)	No network service
HDMI output	No HDMI output
HDMI/LVDS output (VGA option)	LVDS output
HDMI/LVDS output (VGA option)	HDMI input (option)
Update contents by USB/SD/WIFI/RJ232/PC/3G/4G	Update contents by USB/SD
Infrared or capacitive touch(Option)	Touch is not supported
Support software installing application	Application is not supported
