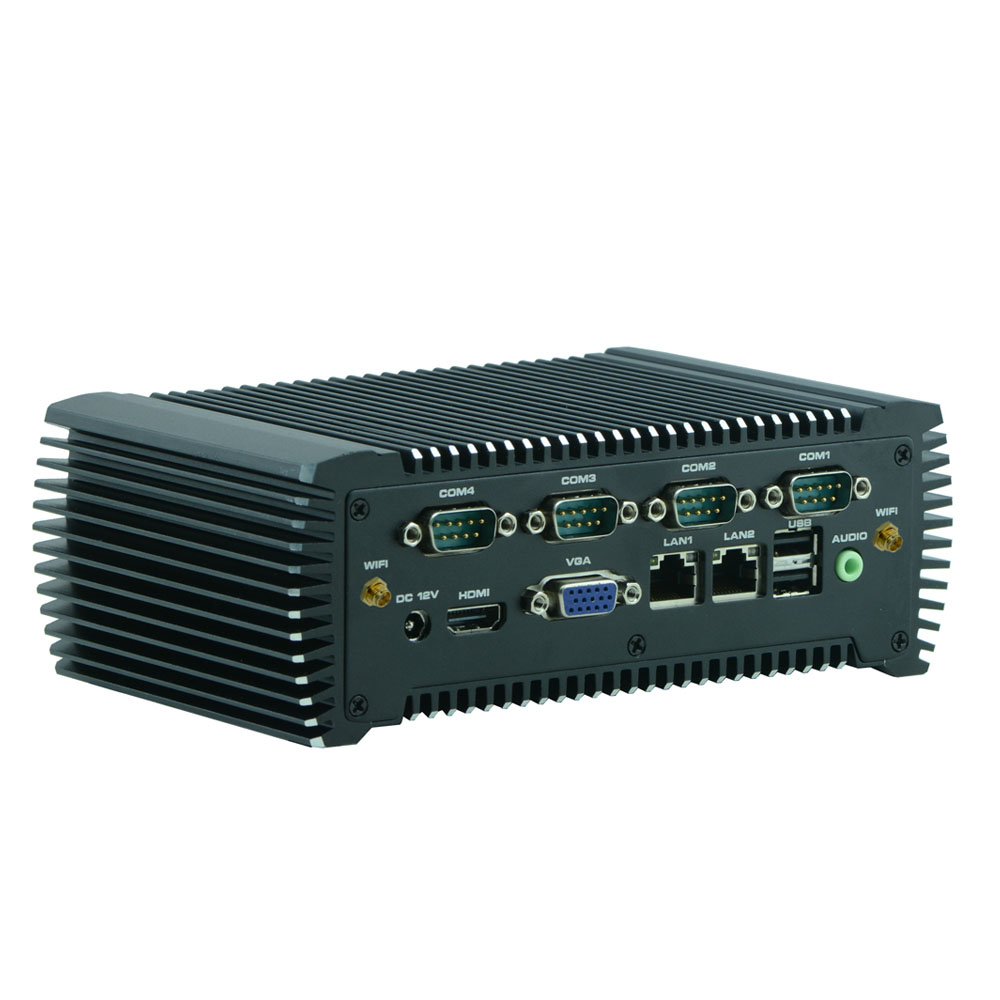

ROCFLY industrial control computer, based on the operating platform of the embedded system, can realize the functions of currently widely used industrial control computer, tablet computer, HMI (human-machine interface) and other products, directly support color touch screen operation, more equipped with analog input and switching value output interfaces, support audio and video encoding and decoding, and network transmission, and can directly establish a small control system or serve as the oper

Model： RF-MPC005
Operating System： Windows
Installation： Embedded Mounted
After-sales Service： 1 Year

Parameters

Model： RF-MPC005
Operating System： Windows
Installation： Embedded Mounted
After-sales Service： 1 Year

Product Detail

♦ Fanless Cooling structure

♦ All aluminum alloy, compact structure,flexible installation

♦ support WIFI and 3G model expansion ,provide 1* SIM card socket

♦ 1xVGA/1xHDMI display output

♦ 2* RTL 8111E Gigabit Ethernet, support wake on LAN/PXE

♦ Rich I/O:6xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHMDI

Chassis	Colour	Black
	Dimension	182mm107mm63.5mm（LWH）
	Structure	All aluminum fanless cooling structure
	material	All aluminum alloy
Motherboard	Model	EPIC-N26 VER1.2
	Processor	Integrated Intel@Atom N2600/1.66G dual core Processsor
	Graphics	Integrated Intel®3600 Graphics
	Memory	1* DDR3/1.5V/2GB Memory,up to 4GB
Storage	HDD	Support 1* 2.5 inch HDD expansion
	CF	N/A
	SSD	Support 1* MSATA SSD expansion，standard configuration 64G
System Feature	LAN	2* LAN（RTL8111E Gigabit Ethernet）
	USB	6* USB2.0
	Serial port	6* COM, COM2 support RS485
	display	1* VGA/1*HDMI display output
	Audio	1* Line-out
	Expansion slot	1* SIM card socket
	Indicator	Power LED/HDD LED
	System control	Power switch
	Antenna	2* WIFI/3G SMA antenna（Optional）
Power	Power	12V/5A Adapter
Reliability	Installation	Embedded or Wall mounted installation
	Operating Temp.	0℃～45℃
	Storage Temp.	-20℃～70℃
	Relative humidity	5%-95%, no condensing
	Vibration	0.5g rms/5-500HZ/random/operating
