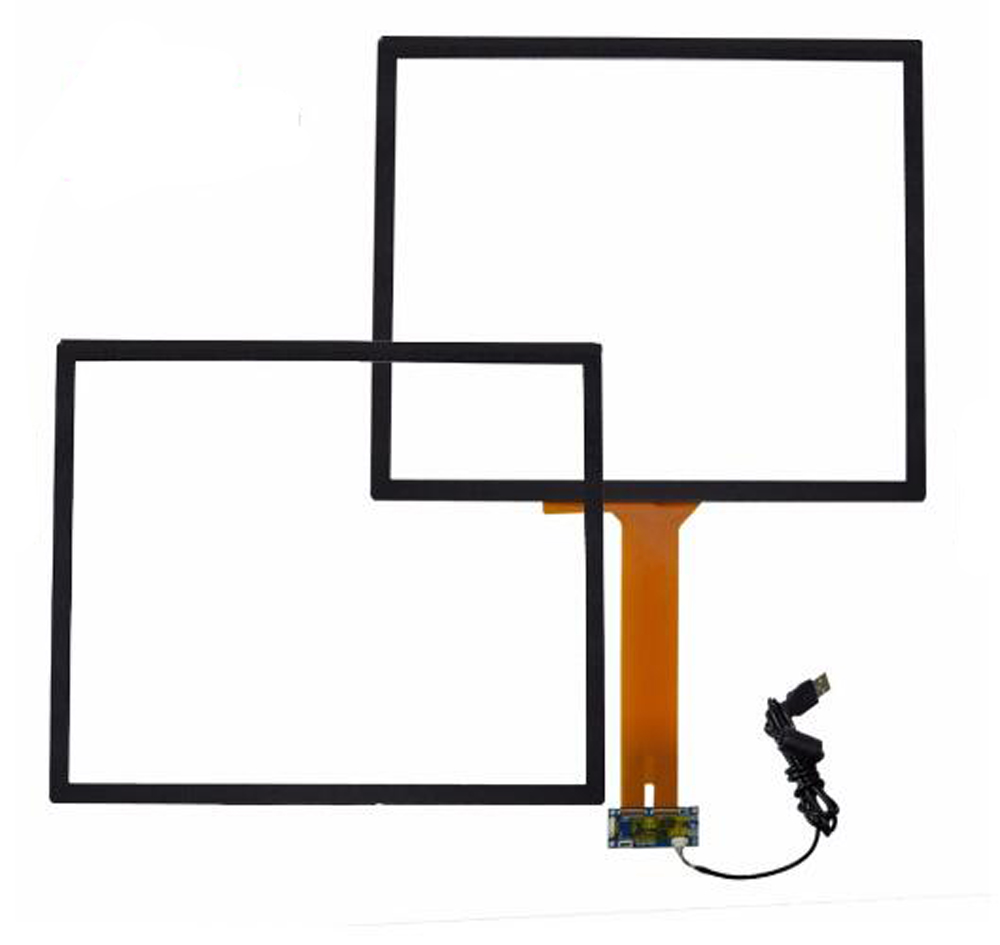

10.1 inch capacitive touch panel

capacitive touch screen capacitive touch sensor capacitive touch 7 inch capacitive touch screen custom capacitive touch screen capacitive touch screen manufacturers custom capacitive touch panel capacitive touch screen devices usb capacitive touch screen touch screen type capacitive

Rocfly has more than 100 popular capacitor touch screens for customers to choose, with dimensions of 3.5 "- 43", GG, GFF structure, 12C, USB, RS232 interface and relevant control cards, meeting personalized demands of different customers in application fields.

Model： RF-CTP001
Operating System： Without
Installation： Paste
After-sales Service： 1 Year

Parameters

Model： RF-CTP001
Operating System： Without
Installation： Paste
After-sales Service： 1 Year

Product Detail

1.Key Specifications

1. General Specification
Touch Technology	PCAP project capacitive touch technology
Touch Panel Size	10.1inch 16:10
Input Medium	Finger, gloved hand, or passive stylus
Touch_Panel Structures	G+G
Cover_Lens_Active Area	136.60mm x 217.96mm
Cover_Lens_Outline Dimension	174.00mm x 251.30mm
Touch_Sensor_Active Area	137.80mm x 219.16mm
Touch_Sensor_Outline Dimension	146.50mm x 225.80mm
Total Thickness	3.75±0.15mm (Cover_Lens 3.0mm & Sensor 0.55mm)
Report Rate	≥100Hz
Positional Accuracy	±1.5mm
Surface Hardness	≧7H (Meets pencil hardness 7H per ASTM D 3363)
Cover_Lens	3mm tempered anti-vandal glass meet UL60950 stell ball drop
Haze(ASTM D 1003)	Clear surface≦3% Antiglare Surface≦4%
Durability	Over 50 million touchs in one location
Touchscreen Operating Temperature	-20℃ ~ 70℃
Controller Operating Temperature	-20℃ ~ 70℃
Touchscreen Operating Humidity	20% ~ 90%RH (Non-condensing)
Controller Operating Humidity	20% ~ 90%RH (Non-condensing)
Storage Environmental	-30℃ ~ 80℃, RH<90% (Non-condensing)

2. Electrical Characteristics
Touch_Controller_Mode	COF
Communication Interface(s)	USB(Standard), RS-232, I2C (Options)
Supply Voltage	DC5V
How to supply it	From COM / USB Port /Mainboard of PC
Number of Touches	Up to 16
Operating System	Windows XP, Windows 7, Windows 8, Windows 10, Linux, Android
Warranty	1 year
Agency Approvals	FCC,CE,ROHS
