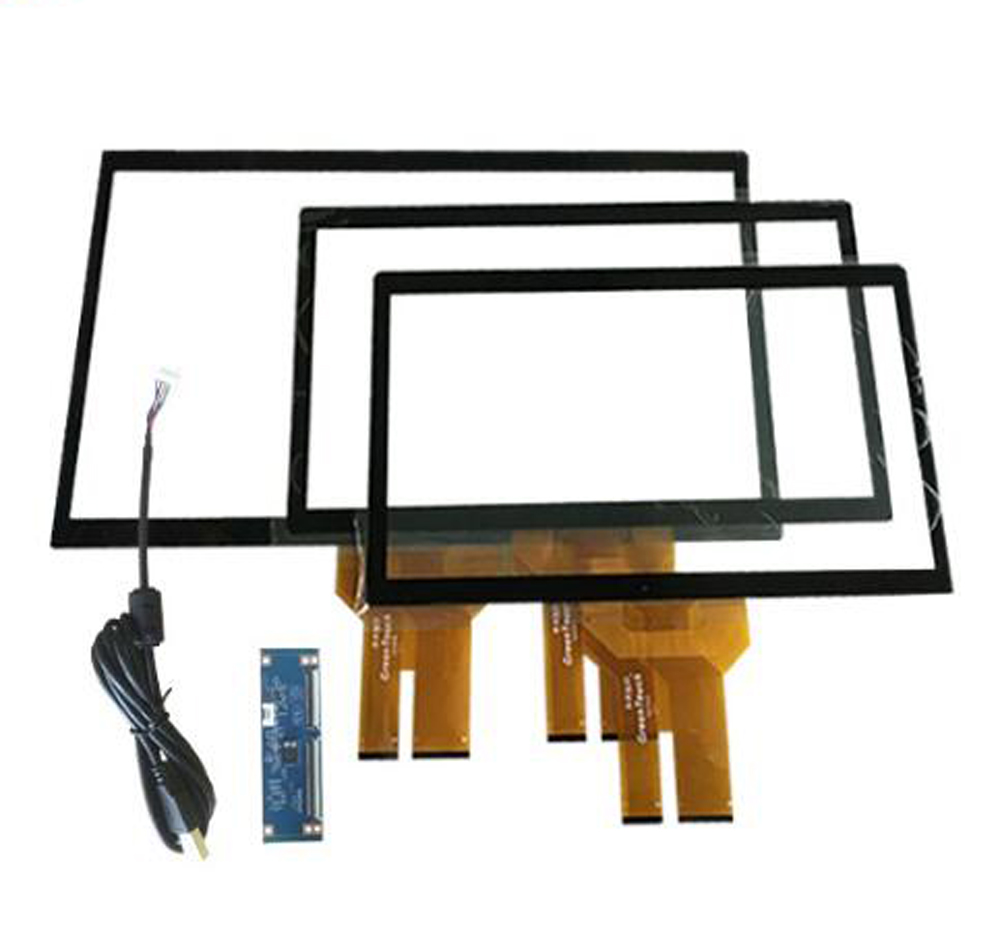

Customize different sizes 17 19 21.5 27 32 43 55 65 inch PCAP projected capacitive touch panels for computer and kiosk

Customize different sizes 17 19 21.5 27 32 43 55 65 inch PCAP projected capacitive touch panels for computer and kiosk

capacitive touch screen capacitive touch sensor capacitive touch 7 inch capacitive touch screen custom capacitive touch screen capacitive touch screen manufacturers custom capacitive touch panel capacitive touch screen devices usb capacitive touch screen touch screen type capacitive

Rocfly has more than 100 popular capacitor touch screens for customers to choose, with dimensions of 3.5 "- 43", GG, GFF structure, 12C, USB, RS232 interface and relevant control cards, meeting personalized demands of different customers in application fields.

Model： RF-CTP002
Operating System： Without
Installation： paste
After-sales Service： 1 Year

Parameters

Model： RF-CTP002
Operating System： Without
Installation： paste
After-sales Service： 1 Year

Product Detail

Available size		Touch points
	15.6″17″18.5″19″19.5″21.5″22″23″		10 points
	23.6″24″27″32″42″43″55″65″…110″
Structure	Cover glass + Sensor glass	TP Thickness	2.0-4.4mm
Chip solution	Weida chip	Controller	USB 2.0 (full speed)
Chip solution	EET chip	Controller	USB 2.0 (full speed)
Ratio	4:3 16:9	Transparency	≥85%
surface hard	6H	Power supply	USB 5V
PCB thickness	5.0mm-5.2mm		49.91*33.94mm ( Weida )
PCB thickness	5.0mm-5.2mm	PCB dimension	30x140mm (EETI)
Operating system	Windows7/8/10,Linux and Android (V4.0 or above).		<8ms
Operating system	Windows7/8/10,Linux and Android (V4.0 or above).	Response time	<8ms
working environment	-40 to 85 ℃,≤90%RH (EETI)	Stroage environment	-40 to 90 ℃,≤90%RH (EETI)
working environment	-20℃~+60℃,≤90%RH (Weida)	Stroage environment	-30℃~+70℃,≤90%RH (Weida
Driver	No need(usb plug and play)	Warranty	12 months
Device type	touch (with gesture supports per OS) or mouse (click, drag, double click, right-click)	Touch technology	optical imaging touch technology
