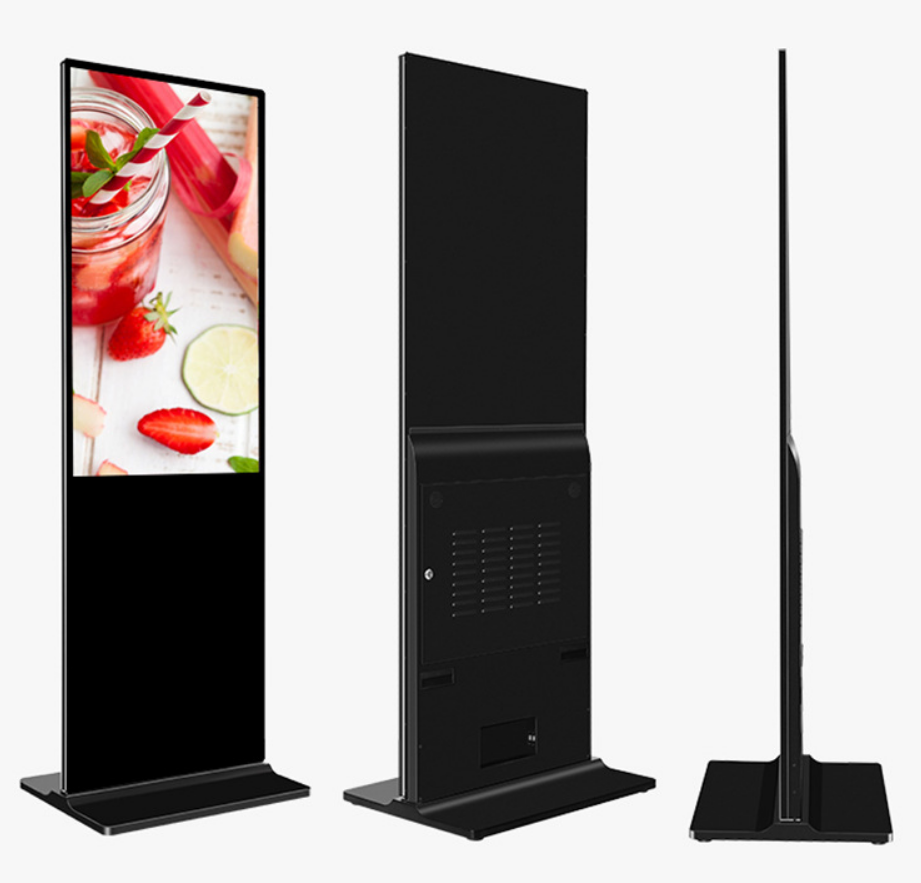

55 Inch Advertising Monitor Screen Digital Signage Kiosk

55 Inch Advertising Monitor Screen Digital Signage Kiosk

advertising player digital signage all in one pc

On a regular basis, Advanced Kiosks helps implement self-service technology for customers of all kinds. When Houston vision care provider Devlyn Optical contacted us about their project, we tested their software on one of our kiosks, facility to make sure that this would work out of the box. As soon as we tried it we were all impressed and we are sure you will be too.

advertising player digital signage all in one pc

Model： RF-ATS010
Operating System： Windows,Android
Installation： Wall Mounted/Bracket Mounted/Floor Standing/Ceiling Mounted
After-sales Service： 1 Year

Parameters

Model： RF-ATS010
Operating System： Windows,Android
Installation： Wall Mounted/Bracket Mounted/Floor Standing/Ceiling Mounted
After-sales Service： 1 Year

Product Detail

Main features

OS:	Android 4.4
Hardware	CPU:	Cortex-A7 Quad-Core 1.2G
	RAM:	2GB DDR3
	Nand Flash:	Standard 8GB(16GB/32GB optional)
	WiFi module:	Support WIFI 802.11b/g/n
	3G:	3G/4G module(optional)
Managing software:	We can offer professional managing software. You may use your own app.
Playlist editor:	Multimedia contents can play by playlist mode
Display layout:	You can design the contents layout freely.
Scheduling playback:	Publish task by calendar, then appointed terminal/terminalswould play accordingly.
Multi-languages:	Support English, French, German, Italian, Swedish, Denmark,Portuguese, Spanish, Japanese….etc
Multizone display:	Video, photo, text, ppt, word, excel, flash, rss, wheather,clock, web can be display on different areas.
Timing function:	Set time power on /off and automatically display and loop,7days and 24 hours no manual operation.
Protection plate:	Files on SD card can be protected by protection plate fromalteration in mischief.
video/picture rotation:	90/180/270 degree. (vertical display or horizontal display)
Advanced functions:	Support play log, customer logo
Display type:	Horizontal or vertical/ landscape or portrait
Two speakers:	Built-in stereo speakers (2x10W)
Files update:	Files can be transmitted to SD card memory automaticallyfrom server through network.
Touch screen:	Optional
Network options:	LAN and WiFi (3G/4G is optional)
Scheduling playback:	No limit time set and groups management online via network.
Management software:	With management software installed in server by which tocontrol and group manage all terminals
Rolling caption:	With the running marquee function (roll caption, text bar).
Support memory size:	8GB-500GB
Accessories:	Use Manual, power cord, Remote Control, keys, USB dongle
Warranty:	One year from shipping date or more as you need.

More Specs

LCD screen specs	Model Number:	MW-431AKN	MW-491AKN	MW-551AKN	MW-651AKN
	Screen size:	43″	49″	55″	65″
	Display proportion:	16:9	16:9	16:9	16:9
	Pixel Pitch:	0.4903*0.4903	0.56*0.56	0.744*0.744	0.744*0.744
	Resolution(Pixel):	1920*1080	1920*1080	1920*1080	1920*1080
	Display color:	16.7 M	16.7 M	16.7 M	16.7 M
	Response time:	26ms	6ms	6ms	8ms
	Luminance:	300 cd/m2	300 cd/m2	350 cd/m2	360 cd/m2
	Contrast ratio:	1200:1	1200:1	1400:1	4000:1
	View angel (L/R/U/D):	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
	Backlit:	LED	LED	LED	LED
Media Formats	Video:	RM, RMVB, MKV, MOV, M4v, MPG1/2/4,TS,FLV,PMP, AVI,VOB,DAT, MP4, (1080P decoding)
	Audio:	MP3, WMA
	Picture:	JPEG, BMP,GIF,PNG
Power supply	AC Input:	110-240V
Appearance	Color option:	White/Black or optional
	Housing material:	Aluminum frame+front tempered glass
	I/O interface:	1SD card slot,1LAN port, 2*USB,,Power switch
	Installation:	Floor standing
