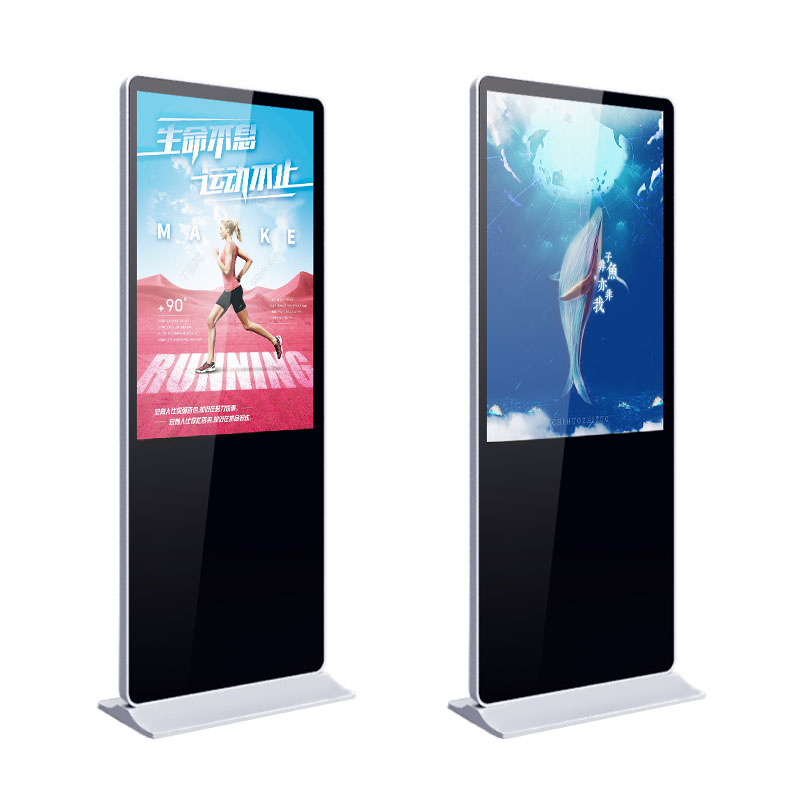

KER Factory Customized Android or Windows 43″ 49 55 65 inch indoor vertical floor stand alone digital signage advertising players

KER Factory Customized Android or Windows 43″ 49 55 65 inch indoor vertical floor stand alone digital signage advertising players

advertising player digital signage all in one pc

On a regular basis, Advanced Kiosks helps implement self-service technology for customers of all kinds. When Houston vision care provider Devlyn Optical contacted us about their project, we tested their software on one of our kiosks, facility to make sure that this would work out of the box. As soon as we tried it we were all impressed and we are sure you will be too.

advertising player digital signage all in one pc

Model： RF-ATS009
Operating System： Windows,Android
Installation： Wall Mounted/Bracket Mounted/Floor Standing/Ceiling Mounted
After-sales Service： 1 Year

Parameters

Model： RF-ATS009
Operating System： Windows,Android
Installation： Wall Mounted/Bracket Mounted/Floor Standing/Ceiling Mounted
After-sales Service： 1 Year

Product Detail

Specification

Panel	Size	55″ TFT LCD digital sigange display
	Display Area(mm)	1209.6*680.4(W×H)
	Display Ratio	16:9
	Resolution	3840*2160 for 4K
	Color	16.7M
	Pixel Pitch (mm)	40PPI
	Brightness (nits)	500cd/m2
	Contrast	3000:1
	View Angle	89°/89°/89°/89°(Typical)
	Response Time	8ms
	Life (hrs)	50000
Audio	Speaker	2×5W(8Ω)
	Magnetic circuit	inner-magnet
	Max vol	94+3db
	Audio Mode	stereo
Power	Brand	OEM
	Input Voltage	AC100-240v 50/60HZ
	Standby Power	≤1W
	Rated Power	≤295W
Mainboard	OS	Android 4.2/4.4/5.1/6.0
	CPU	RK3188 quad core
	RAM	1GB/2GB
	Internal memory	EMMC FLASH 8G
	External memory	Support SD card
	Interface	2×USB2.0,1×SD,2×COM,1×LAN,1×HDMI OUT(internal),1×LVDS
	Networking	RJ45,WIFI
	Camera interface	1×DVP,1×MIPI
	Signal Output Mode	video support LVDS/HDMI input,Audio support left and right sound channel
Main Function	Video Format	Support wmv,avi,flv,rm,rmvb,mpeg,ts,mp4 etc.
	Picture Format	Support BMP,JPEG,PNG,GIF etc.
	Audio Format	Support MP3,24bit linear PCM7.1
	Other Format	Support PDF/RSS News/ Weather forecast/PPT/Web page etc
	Display Mode	Horizontal and vertical screen, full screen, arbitrary split screen,double screen different show, double screen same display
	Program Updating	Network remote update, U-disk update
	Program Download	Using FTP Agreement, Supoport regular and automatic download ,support speed-limit download
	Program Upgrading	Network remote ;remote Control
	Time setting	Support any time
	RTC Real-time clock	Support

Other optional size:32″/43″/49″/50″/55″/65″

Digital signage display version

Stand-alone function parameters		Network function parameters
Product model	HDY-550F Software Digital Signage	Product model	HDY550N Software Digital Signage
Chip	/	Chip	RK3188 quad core
Port	1xUSB2.0	Port	1xUSB2.0,1xSATA,1xSD,CVBS(optional)
storage medium	U disk/SD card	Storage medium	SD cars/U disk and hard disk
Video format	MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,WMV,RM,RMVB	Video format	MPG,MPG-1,MPG-2,MPG-4,AVI,MP4, TS,MKV,WMV and so on
Resolution	3840*2160	Resolution	3840*2160
Photo format	JPEG,PNG,BMP	Photo format	GIF,JPEG,PNG,BMP
Speakers	2x5W	Speakers	2x5W
Frame rate	30frm/s	Audio format	MP3,24bit linear PCM7.1
audio sampling rate	32KHZ,44.1KHZ,48KHZ,96KHZ	Management software	Android
Bit rate	32kbps-384kbps	Other format	PDF/RSS NEWS/WEATHER REPORT/PPT
Color depth	24bit	Networking way	RJ45 port,wifi,3G,Lan(optional)
Stream	USB2.0 device:30MB/S	Program update way	Network remote update by table pc, U disk update
Product function	Automatically play the contents when start up, Language: Chinese\English\French\Russian etc	Display mode	Horizontal/vertical screen, full screen/split screen
		Program download	Time to download, automatically download
		Application upgrade	Remote upgrade
		Support timer switch	Support any time
		Other function	The user can real-timely monitor the working condition of all terminals through server( Real-timely grab any broadcast video, pictures, captions of terminals)
